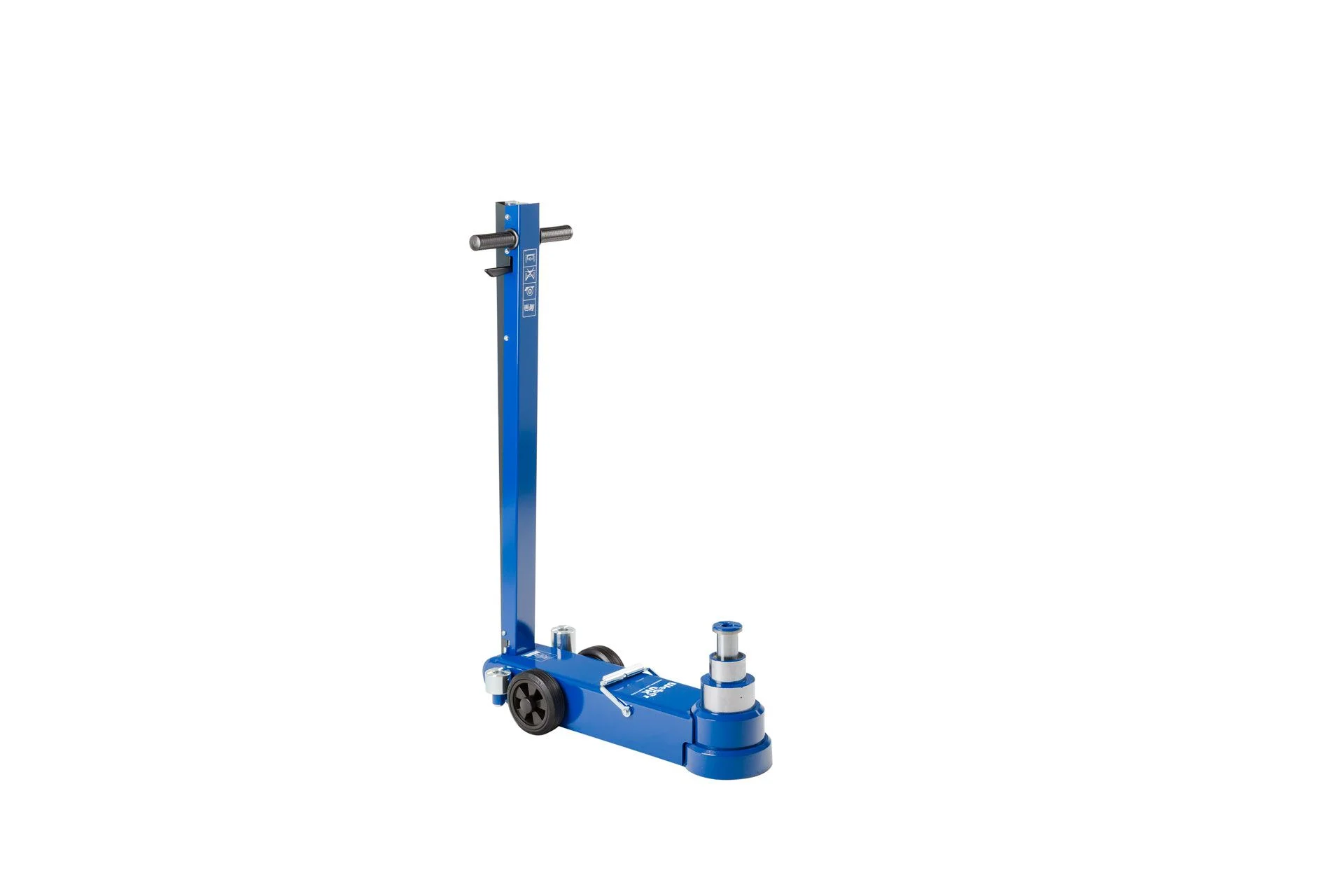

50 Tonne Triple Ram Air Hydraulic Trolley Jack - AH50-3

50 Tonne Triple Ram Air Hydraulic Trolley Jack – AH50-3

50 Tonne Triple Ram Air Hydraulic Trolley Jack for low buses and other low clearance vehicles

Description

50/25/10 Tonne Triple Ram Air/Hydraulic Trolley Jack

Minimum height of only 150mm, combined with a high lifting capacity
Telescopic cylinders ensure an excellent maximum lift with a low closed height
Designed for heavy-duty, intensive commercial use.
Hard chromium plated piston rod for long life.
Built-in safety overload valve.
Hand-operated dead-man’s control for optimum safety whilst lifting and lowering.
Ergonomic Handle with push buttons.
Supplied with 2 extensions as standard (50/100mm)

Available Accessories:

F250 – 250mm Extension Piece (4402000)
FW – Dished Saddle (4402100).
FW1 – V-Saddle (6323100).

Additional information

Minimum Height (mm)	150
Weight (kg)	67
Frame Length (mm)	810
Handle Length (mm)	1160
Width (mm)	200
Capacity (kg) First Stage	50,000
Capacity (kg) Second Stage	25,000
Capacity (kg) Third Stage	10,000
Max Height (mm) First Stage	210
Max Height (mm) Second Stage	265
Max Height (mm) Third Stage	335
Width with Wheels (mm)	310
Air Supply	9 – 12 Bar
Air Consumption (l/min)	350
Type	AH50-3

Reviews

There are no reviews yet.

Be the first to review “50 Tonne Triple Ram Air Hydraulic Trolley Jack – AH50-3”

There are currently no downloads

Warranty Registration

Register your new Weber purchased product warranty here, or extend your existing warranty for an extra year FREE of charge.

Warranty Registration

Product Recommendations

Commercial Support Stands - WSC6H

Commercial Support Stands – WSC6H

Commercial Support Stands – WSC6H

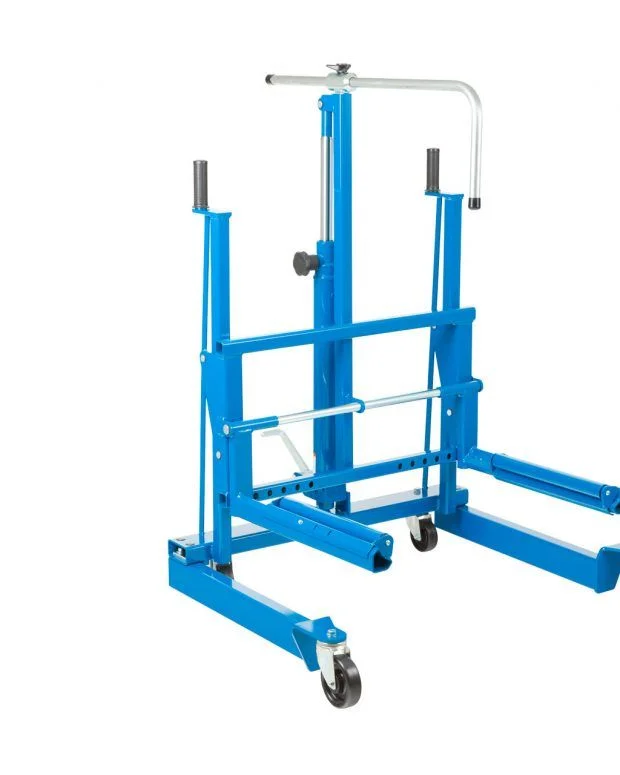

500Kg Capacity Hydraulic Wheel Trolley - WTA500

500Kg Capacity Hydraulic Wheel Trolley – WTA500

500Kg Capacity Hydraulic Wheel Trolley for vans, trucks and buses

Capacity (kg) : 500

500Kg Capacity Hydraulic Wheel Trolley – WTA500

Optional Handle for Heavy Duty Jacking Beams and Pit Jacks - GR

Optional Handle for Heavy Duty Jacking Beams and Pit Jacks – GR

Optional Handle for Heavy Duty Jacking Beams and Pit Jacks

Optional Handle for Heavy Duty Jacking Beams and Pit Jacks – GR

500Kg Foldaway Floor Crane - WJN5-EURO

1100Kg Foldaway Floor Crane – WJN10-EURO

1100Kg Foldaway Floor Crane with Euro Pallet Legs

Capacity (kg) : 1,100

1100Kg Foldaway Floor Crane – WJN10-EURO

16 Tonne Per Pair High Axle Stands - WS16H

16 Tonne Per Pair High Axle Stands – WS16H

16 Tonnes Per Pair High Axle Stands

16 Tonne Per Pair High Axle Stands – WS16H

40 Tonne Manually Operated King Pin Press - WFP40I

40 Tonne Manually Operated King Pin Press – WFP40I

40 Tonnes Manually Operated King Pin Press for Commercial Workshops

40 Tonne Manually Operated King Pin Press – WFP40I

Flexible Cross Beam Adaptor - T5-1

15 – 11.5 Tonne Capacity Flexible Cross Beam Adaptor – T5-2

15 - 11.5 Tonnes Capacity Flexible Cross Beam Adaptor with Extra Long Reach

15 – 11.5 Tonne Capacity Flexible Cross Beam Adaptor – T5-2

65 Tonne Single Ram Air Hydraulic Trolley Jack - AH65-1

65 Tonne Single Ram Air Hydraulic Trolley Jack – AH65-1

65 Tonne Single Ram Air Hydraulic Trolley Jack for heavy contractors' machinery

65 Tonne Single Ram Air Hydraulic Trolley Jack – AH65-1

25 Tonne Single Ram High Lift Air Hydraulic Trolley Jack - AH25-1H

25 Tonne Single Ram High Lift Air Hydraulic Trolley Jack – AH25-1H

25 Tonne Single Ram High Lift Air Hydraulic Trolley Jack for agricultural and contractors' machinery, trailers and other high clearance applications

25 Tonne Single Ram High Lift Air Hydraulic Trolley Jack – AH25-1H

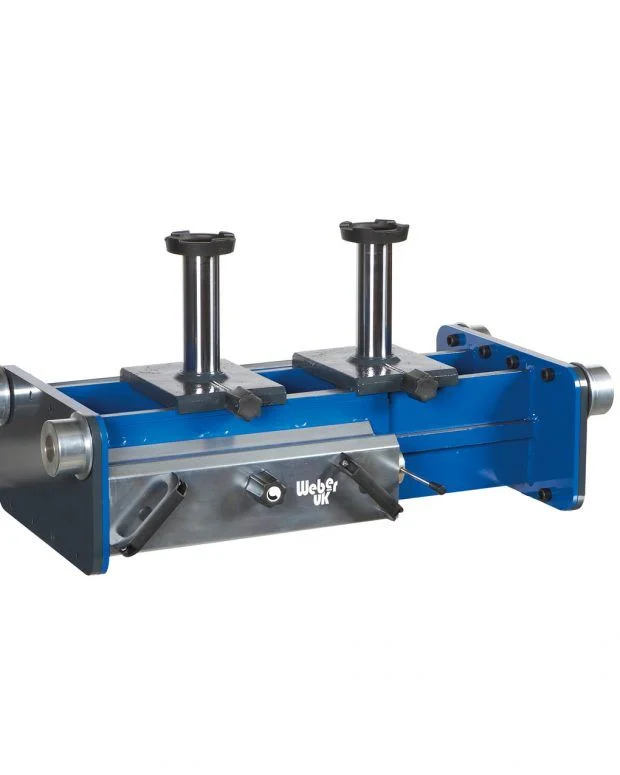

6 Tonne Air Hydraulic Twin Ram Heavy Duty Jacking Beam - FL60-2
